WON-H4-D-R-SC

WON-H4-D-R-SC

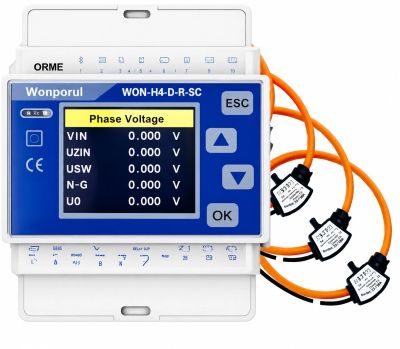

The WON-H4-D-R-SC Series is a DIN-Rail three-phase  multifunctional smart meter with a current sensor system  built around a Rogowski coil—a flexible type CT and Split  Core CTs.

WON-H4 Series Rogowski-type meter excels at accurate,  safe, and flexible high-current AC measurement, especially  in tight environments or where fast transient detection is  needed and position it carefully for best accuracy.

Specifications

•  3 Phase-DIN Rail mounting – panel friendly design

•  CT Operated -/5-/1A field programmable

•  Accuracy Class 0.5S

•  Import & Export (Bi-directional) Energy

•  Current Demand & Maximum Demand

•  RS485 Modbus Communication

•  Voltage & Current Harmonics up to 50th order

•  Wide current range (up to 12,000 A with Rogowski coil)

•  Power supply: 95–265 VAC / 110–370 VDC

•  1 DI & 1 Relay Output
