WON-H2-R

WON-H2-R

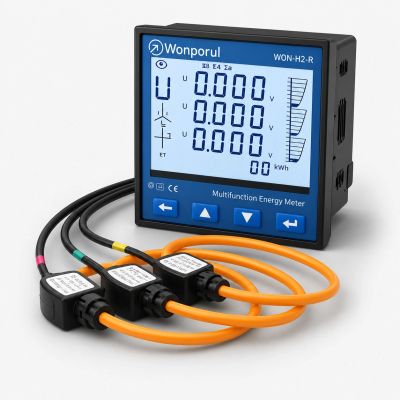

WON-H2-R Multifunction Energy Meter+ Power Quality with  Rogowski Coil is an advanced device designed to measure  and monitor various electrical parameters in an energy  distribution system.

It provides real-time data on the consumption and quality  of electrical power, enabling businesses, industries, and  households to better understand their energy usage,  improve efficiency, and reduce operational costs.

Specifications

•  96x96 Multifunction Energy + Power Quality meter with Rogowski CT

•  Flexible Rogowski coil (50 / 85 / 333 mV/kA)

•  Accuracy Class 0.5S

•  Import & Export (Bi-directional) Energy

•  kWh energy always visible on display

•  Current Demand & Maximum Demand

•  RS485 Modbus Communication

•  Multi-functional parameter measurement

•  LV/MV/HV metering with CT & PT / 1P2W, 3P3W, 3P4W

•  Measures energy + demand + harmonics

•  Harmonics up to 50rd order

•  1 DI & 1 DO
